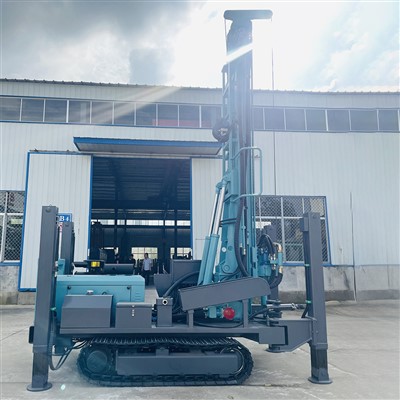

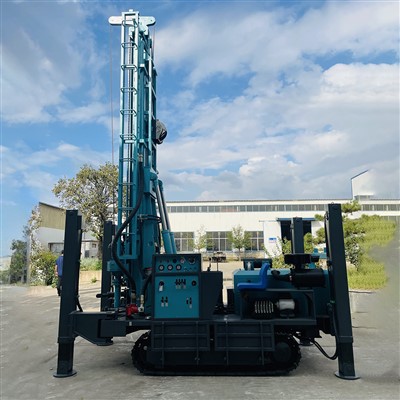

Shallow well boormasjine
Modelnûmer: YW - 300 a
BTW (M): 300
ROTATION TORQUQE (N · M): 5700 - 7500
HTW (M): 800
Motoremalje: Yuchai Corporation
Beskriuwing
| Modelnûmer | Yw {- 300 a | Yw - 300 b | Yw {- 350 |
| Btw (m) | 300 | 300 | 350 |
| Rotaasje TORQoed (n · m) | 5700 - 7500 | 5700 - 7500 | 6200 - 8500 |
| HTW (m) | 800 | 1000 | - |
| Motormerk | Yuchai Corporation | Yuchai Corporation | Yuchai Corporation |
| Motor Power (KW) | 85 | 85 | 91 |
| Bootball (T) | 18 | 18 | 22 |
| Wurkdruk (MPA) | 1.7 - 3.0 | 1.7 - 3.0 | 1.7 - 3.4 |
| Gas konsumpsje (m³ / min) | 17 - 36 | 17 - 36 | 17 - 36 |
| Reis (M) | 3.3 | 6.6 | 6.6 |
| Gewicht (t) | 6.8 | 8 | 8.6 |
| Borehole diameter (mm) | 140 - 325 | 140 - 325 | 140 - 325 |
| Ien kear propulling lingte (m) | 3.3 | 3.6 | 3.6 |
| Rydsnelheid (km / h) | 2.5 | 2.5 | 2.5 |
| Meisplaring (maks) | 30 | 30 | 30 |
| Rotaasje snelheid (RPM) | 45 - 70 | 45 - 70 | 66 - 135 |
| Hege leg stroke (m) | 1.4 | 1.4 | 1.4 |
| Drill piip diameter (mm) | 76/89 | 76/89/102 | 89/102 |
| Drill Rod Lengte (M) | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 |
| RAPID ASCEN SPEED (M / MIN) | 22 | 22 | 18 |
| FAST FORWARD SPEED (M / MIN) | 40 | 40 | 33 |
| Houten opheffende krêft (T) | 2 | 2 | 2 |
| Grutte (mm) | 4100*2000*2260 | 5900*1850*2200 | 6000*2000*2550 |
